2500V AC Inuslation Outdoor Anti Reverse PV Branch Connectors, anti-UV 55A MC4 Diode Connector

Name: 2500V AC Inuslation Outdoor Anti Reverse PV Branch Connectors antiUV 55A MC4 Diode Connector
Brand: Neopower
Price: 1 USD

Buy cheap 2500V AC Inuslation Outdoor Anti Reverse PV Branch Connectors, anti-UV 55A MC4 Diode Connector product

Brand Name : Neopower

Model Number : CN40-DC-55

Certification : CE IEC FCC RoHs

Place of Origin : China

MOQ : 1 PC

Price : Negotiable according to Quantities

Payment Terms : Western Union, MoneyGram

Supply Ability : 50000 per day

Delivery Time : 3~7 days

Packaging Details : Standard Export Carton Box

IF(AV) : 55A

VRRM : 600~1800V

IFSM : 2.3KA

I2t : 26.9 103A2S

Contact Now

Outdoor Anti-Reverse PV Diode Connector

Model NO.: CN40-DC-55

Features:

The chip is electrically insulated from the bottom plate;
2500V AC insulation;
Excellent Temperature characteristics & high power cycle,adopting imported glass passivization chip welding;
Compact & Light.

Application:

photovoltaic power generation
PV inverter
New energy electrical vehicles
Lithium battery pack
power rectifier

Technical Parameters:

I_F(AV)	55A
V_RRM:	600~1800V
I_FSM	2.3KA
I²t	26.9 10³A²S

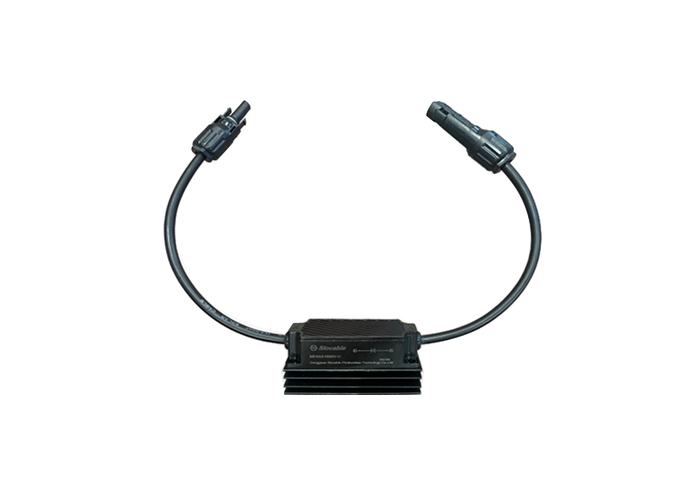

Product Pictures:

2500V AC Inuslation Outdoor Anti Reverse PV Branch Connectors, anti-UV 55A MC4 Diode Connector

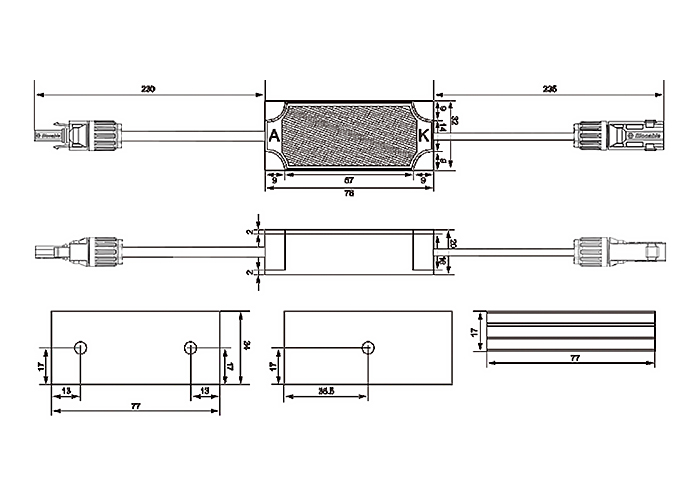

Drawings:

2500V AC Inuslation Outdoor Anti Reverse PV Branch Connectors, anti-UV 55A MC4 Diode Connector
